FZW28-12F Outdoor high voltage vacuum load switch Custom

Home / Products / Load Switch Series / FZW28-12F Outdoor high voltage vacuum load switch
Wenzhou Xubian Electric Co., Ltd.

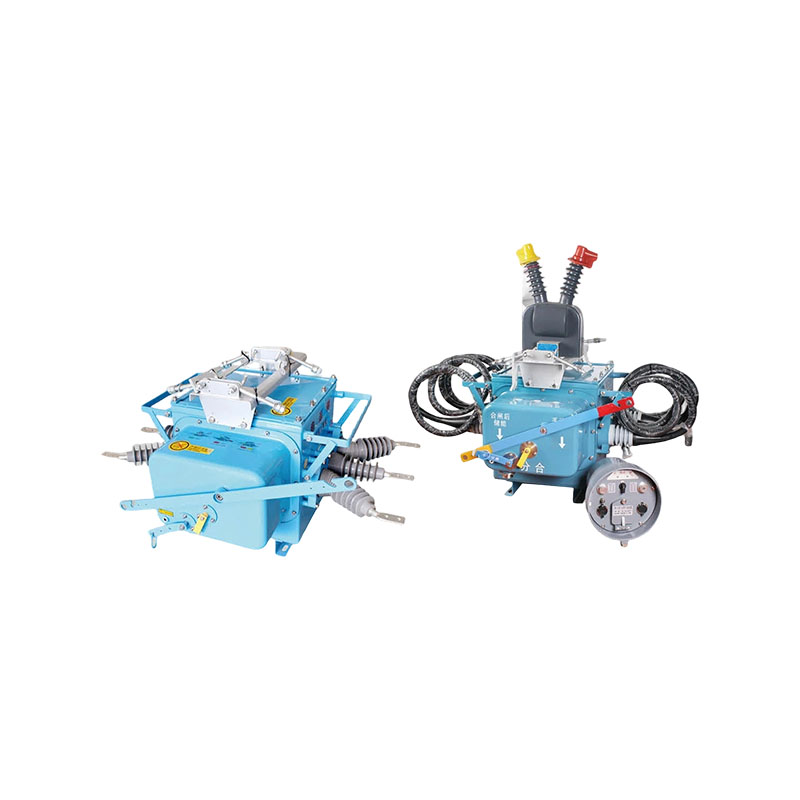

  • FZW28-12F Outdoor high voltage vacuum load switch
  • FZW28-12F Outdoor high voltage vacuum load switch
  • Model Designation
  • Functional Features
  • Technical specifications (see table)
  • Outline and Installation Dimensions

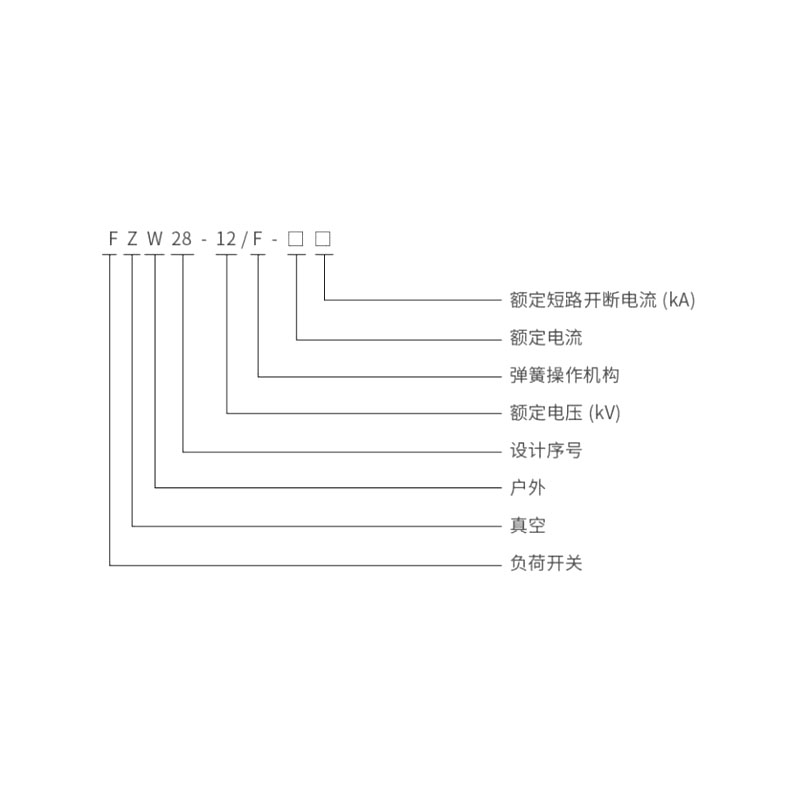

100004-5odb Model Designation
Rated Short-Circuit Breaking Current (kA)
Rated Current
F Spring Operating Mechanism
12 Rated Voltage (kV)
28 Design Serial Number
W Outdoor
Z Vacuum
F Load Switch

Automatic Lockout for Interphase Short-Circuit Faults: When an interphase short-circuit fault occurs on a user branch line, the boundary switch immediately trips and locks out after the substation circuit breaker or recloser protection trips. After the substation recloses, other branch users on the feeder line quickly resume power supply.
Rapid Fault Location: After a user branch line accident causes the boundary switch protection to operate, the responsible user is de-energized and actively reports the incident information. The power company dispatches personnel to the site to investigate the cause of the accident via a PDA or communication module.
Automatic Single-Phase Ground Fault Isolation: When a single-phase ground fault occurs on a user branch line, the boundary switch automatically trips. Other branch users at the substation and on the feeder line will not feel the fault occurrence. This switch can achieve the following functions: instantaneous protection, overcurrent protection, three-shot reclosing, event recording, inrush current protection, zero-sequence protection, real-time clock, post-reclosing acceleration, real-time status query, intelligent PDA control, local/remote setting of values, active fault reporting, and GSM short message functions.

No. Item Unit Data
01 Rated Voltage kV 12
02 Rated Frequency Hz 50
03 Rated Insulation Level Lightning Impulse Withstand Voltage kV 75/85 (Across Contacts)
Lightning Impulse Withstand Voltage (Peak) Dry Test 42/48 (Across Contacts)
Wet Test 34
04 Rated Current A 630
05 Rated Short-Time Withstand Current and Duration kA/2s 16
06 Rated Peak Withstand Current kA 40
07 Rated Short-Circuit Making Current kA 40
08 Mechanical Life times 10000
09 Net Weight kg 210

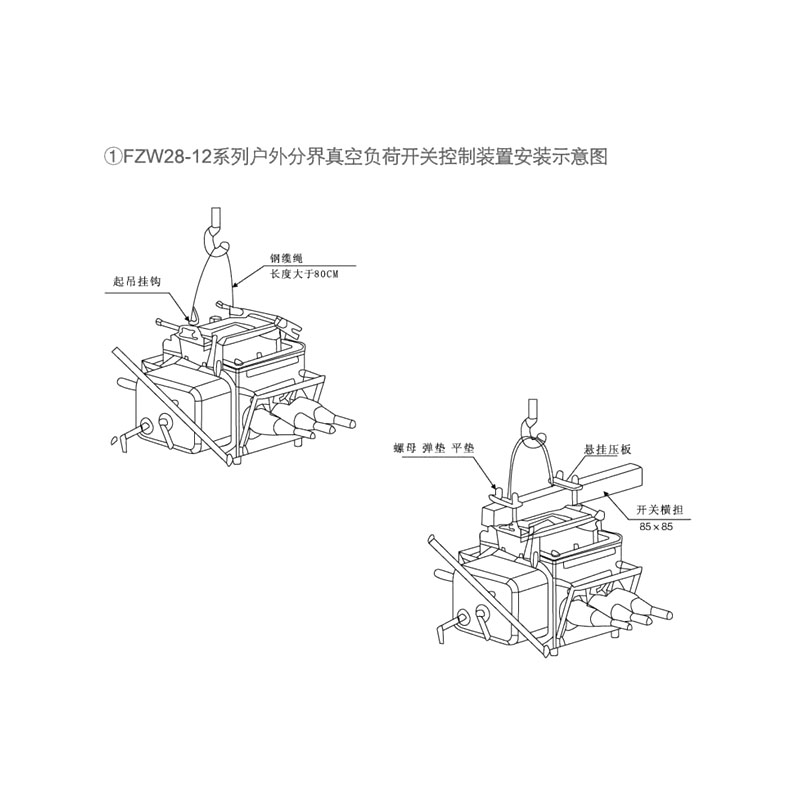

FZW28-12 Series Outdoor Boundary Vacuum Load Switch Control Device Installation Diagram
100022-zLMM 1 Lifting Hook
2 Steel Cable
3 Length Greater Than 80CM
4 Bolt, Spring Washer, Flat Washer
5 Suspension Plate
6 Switch Cross Arm(65x65)

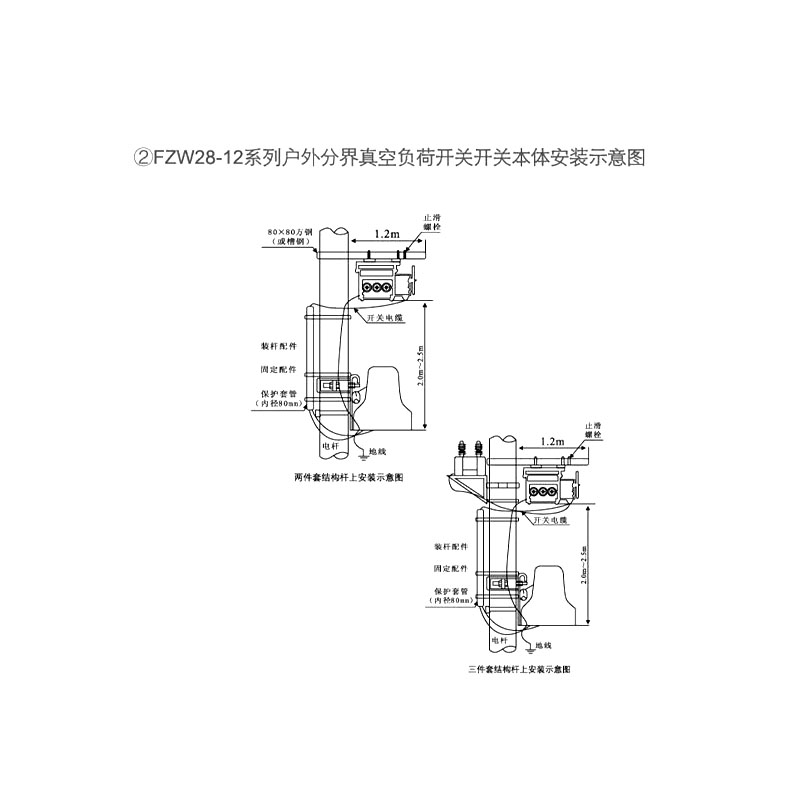

FZW28-12 Series Outdoor Boundary Vacuum Load Switch Body Installation Diagra
100013-dQ5A A 60×60×5 Steel (or Channel Steel)
B Pole Clamping Accessories
C Fixing Accessories
D Protective Sleeve (Inner Diameter 60mm)
E Two-Piece Structure Pole Mounting Diagram
F Three-Piece Structure Pole Mounting Diagram
G Upper Terminal
H Lower Terminal
I 1.2m
J Bolt
K Switch Body
L Suspension Wire
