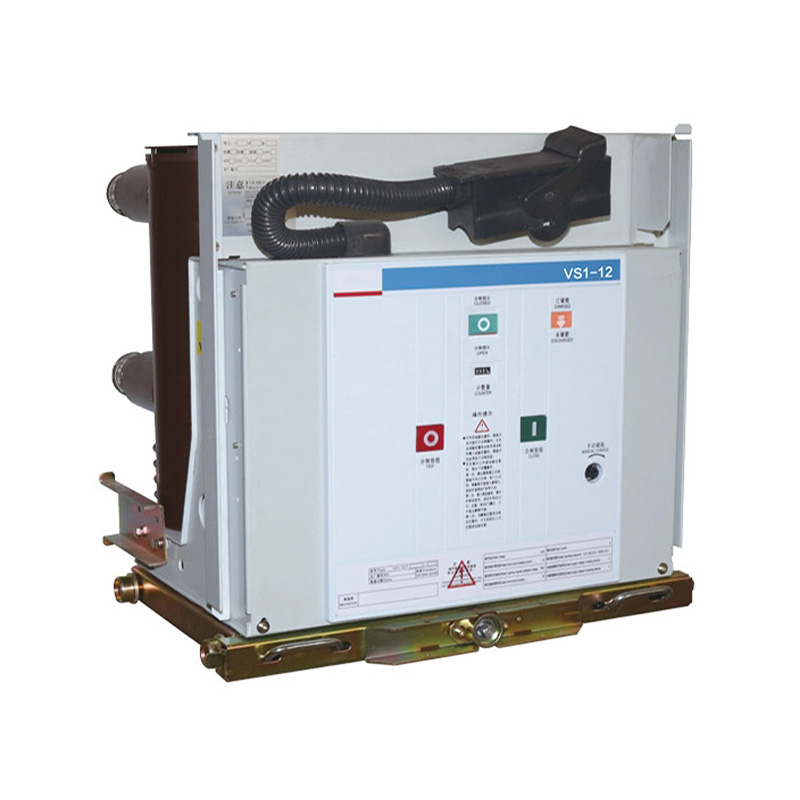

ZN63(VS1)-12 Fixed/handcart indoor high voltage vacuum circuit breaker Custom

Home / Products / Indoor High-Voltage Vacuum Circuit Breaker Series / ZN63(VS1)-12 Fixed/handcart indoor high voltage vacuum circuit breaker
Wenzhou Xubian Electric Co., Ltd.
  • ZN63(VS1)-12 Fixed/handcart indoor high voltage vacuum circuit breaker
  • ZN63(VS1)-12 Fixed/handcart indoor high voltage vacuum circuit breaker
  • ZN63(VS1)-12 Fixed/handcart indoor high voltage vacuum circuit breaker
  • ZN63(VS1)-12 Fixed/handcart indoor high voltage vacuum circuit breaker
000022 Model Designation
ZN Indoor vacuum circuit breaker
63(VS1) Design serial number
12 Rated voltage (kV)
□ Operating mechanism code: G stands for solid-sealed type
□ Rated current
□ Rated short-circuit breaking current (kA)

1. Ambient temperature: not higher than 40°C and not lower than -10°C (storage and transport at -30°C permitted).
2. Altitude: not exceeding 1000m. (If used at higher altitude, the rated insulation level shall be increased accordingly.)
3. Relative humidity: daily average not greater than 95%; saturated vapor pressure daily average not greater than 2.2×10^-3 MPa, monthly average not greater than 1.8×10^-3 MPa.
4. Seismic intensity: not exceeding Grade 8.
5. Places free from fire, explosion hazards, severe pollution, chemical corrosion, and severe vibration.

No. Item Unit Data
01 Rated voltage kV 12
02 Maximum operating voltage kV 12
03 Rated current A 630
1250
630 1250 1250 1600
1600 2000 2000 2500
2500 3150 3150 4000
04 Rated short-circuit breaking current (rated thermal stability current - r.m.s.) kA 20/25 31.5 40
05 Rated short-circuit making current (peak) kA 50/63 80 100
06 Rated peak withstand current (rated dynamic stability current - peak) kA 50/63 80 100
07 4S rated short-circuit withstand voltage kA 20/25 31.5 40
08 Rated insulation level Working withstand voltage (before and after rated breaking) / 1min power frequency withstand voltage kV To earth 42 (across the open contacts 48)
Impulse withstand voltage (before and after rated breaking) / rated lightning impulse withstand voltage peak To earth 75 (across the open contacts 85)
09 Rated thermal stability time s 4
10 Rated operating sequence O-0.3s-CO-180s-CO
11 Mechanical life times 20000
12 Rated number of short-circuit current breaking operations times 50
13 Rated closing voltage of operating mechanism (DC) V AC, DC 110, 220
14 Rated opening voltage of operating mechanism (DC) V AC, DC 110, 220
15 Contact gap mm 11±1
16 Overtravel (compression length of contact spring) mm 3.5±0.5
17 Three-phase opening/closing bounce time ms ≤ 2
18 Contact closing bounce time ms t ≤ 2
19 Average opening speed m/s 0.9~1.2
Average closing speed m/s 0.5~0.8
20 Opening time at maximum operating voltage s ≤ 0.05
21 at minimum operating voltage ≤ 0.08
22 Closing time s 0.1
23 Main circuit resistance of each phase μΩ 630 ≤ 50 1250 ≤ 45
24 Allowable cumulative wear thickness of moving and fixed contacts mm 3
Dimensions in brackets are for 275mm phase spacing
