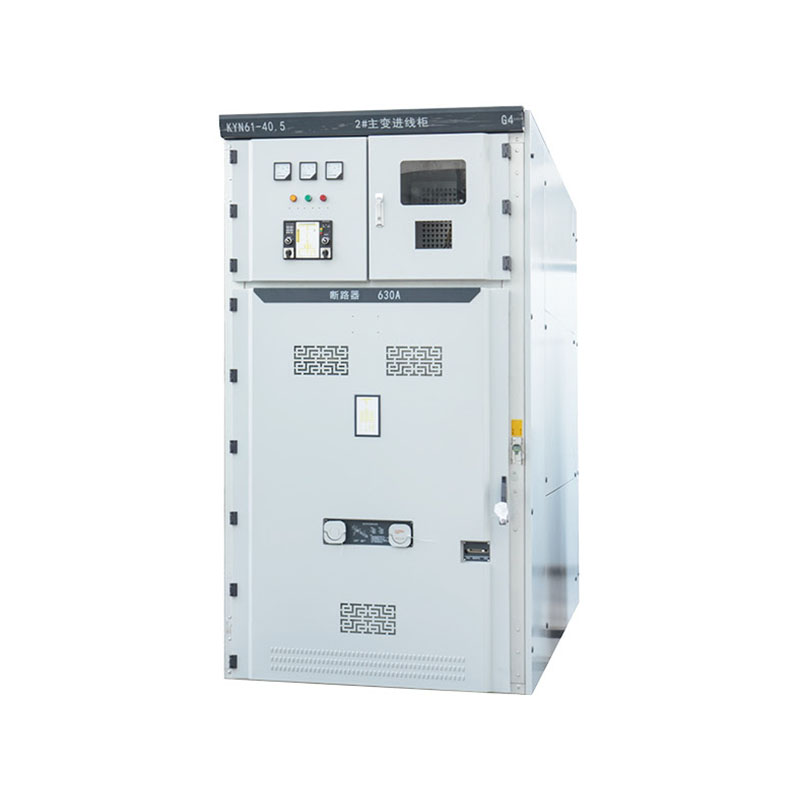

KYN61-40.5(Z) Armoured removable AC metal enclosed switchgear Custom

Home / Products / High-Voltage Complete Switchgear / KYN61-40.5(Z) Armoured removable AC metal enclosed switchgear
Wenzhou Xubian Electric Co., Ltd.
  • KYN61-40.5(Z) Armoured removable AC metal enclosed switchgear
  • KYN61-40.5(Z) Armoured removable AC metal enclosed switchgear
  • Model Designation
  • Normal Service Conditions
  • Main Technical Parameters
  • Installation of the Switchgear
  • Overall Dimensions
  • Equipment Structure Diagram

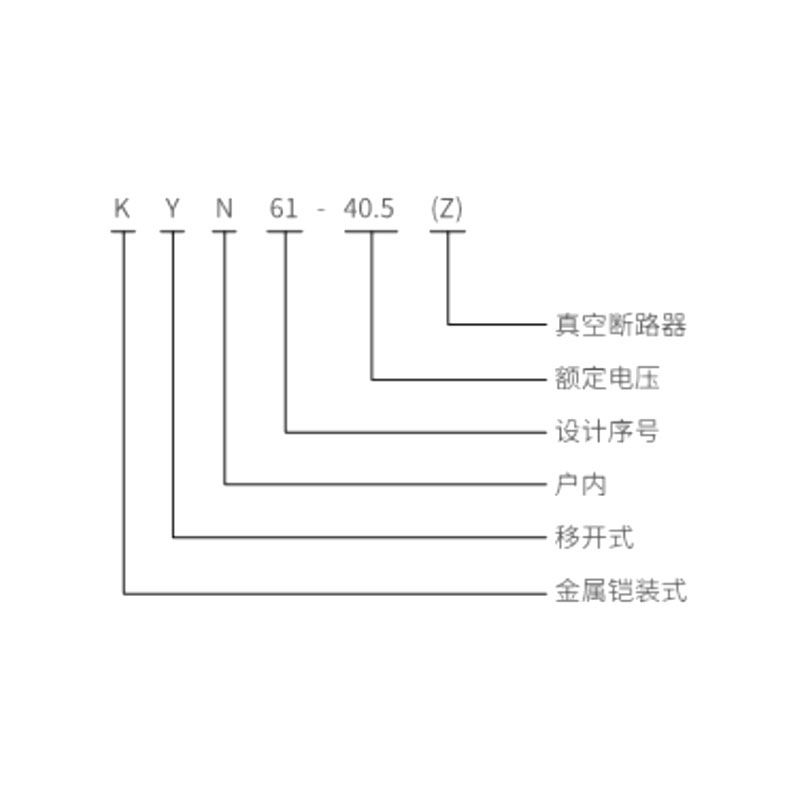

200021 Model Designation
K Metal-Clad Type
Y Withdrawable Type
N Indoor
61 Design Serial Number
40.5 Rated Voltage
(Z) Vacuum Circuit Breaker
  • Ambient air temperature: Maximum +40°C, minimum −15°C.
  • Relative humidity: The daily average relative humidity shall not exceed 95%.
  • Water vapor pressure: The daily average shall not exceed 2.2 kPa.
  • Relative humidity: The monthly average shall not exceed 90%.
  • Water vapor pressure: The monthly average shall not exceed 1.8 kPa.
  • Altitude: Not exceeding 1000 m above sea level.
  • Seismic intensity: Not exceeding 8 degrees.
  • Surrounding air: Free from significant pollution such as corrosive or flammable gases, water vapor, etc.
  • No violent vibration.
  • For use under conditions exceeding the normal service conditions specified in GB 3906, consultation with the manufacturer is required.

Main Technical Parameters of Vacuum Switchgear

Name Unit Value
Rated Voltage kV 40.5
Rated Current A 1250 1600 2000
Rated Frequency Hz 50
Rated Short-Time Withstand Current kA 20 25 31.5
Rated Peak Withstand Current kA 50 63 80
Rated Power Frequency Withstand Voltage kV 95/1min
Rated Lightning Impulse Withstand Voltage kV 185
Rated Short-Circuit Duration s 4
Degree of Protection IP3X


 Main Technical Parameters of Vacuum Circuit Breaker (English Translation)

Name Unit Value
Rated Voltage kV 40.5
Rated Frequency Hz 50
Rated Power Frequency Withstand Voltage kV 95/1min
Rated Lightning Impulse Withstand Voltage kV 185
Rated Current A 1250, 1600, 2000
Rated Short-Time Withstand Current kA 20, 25, 31.5
Rated Short-Circuit Breaking Current kA 20, 25, 31.5
Rated Peak Withstand Current kA 50, 63, 80
Rated Short-Circuit Duration s 4
Opening Time ms 30 ≤ t ≤ 60
Closing Time ms 50 ≤ t ≤ 100
Rated Short-Circuit Breaking Operations times 20
Mechanical Life times 10000
Protection Class IP43

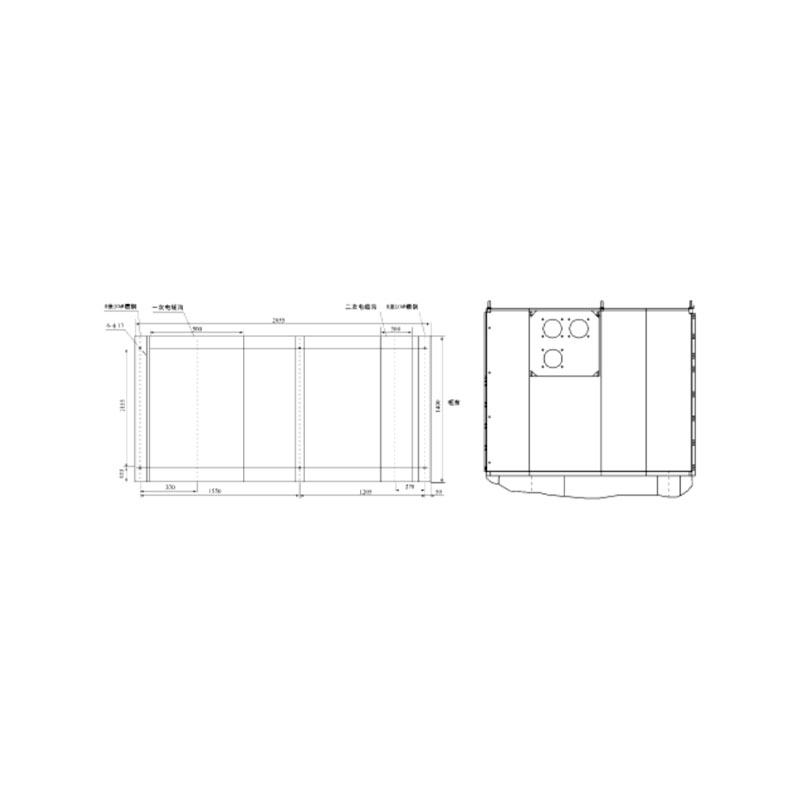

200012 1. Electrical room height: ≥4500 mm.
2. Distance between the rear of the switchgear and the wall: ≥1500 mm.
3. Flatness of the foundation frame: ≤1 mm/m.
4. The portion of the embedded foundation channel steel protruding above the floor shall not exceed 3 mm.
5. The switchgear can be fixed to the foundation by bolting or welding.
6. Approximate weight of the switchgear: 1800 kg.
7. Switchgear operating aisle width (single row): ≥3000 mm; double row (face-to-face): ≥4000 mm.



Height 2650 mm
Width Rated current ≤1600 A 1400 mm
Depth Cable inlet/outlet 2870 mm
Depth Overhead inlet/outlet 2950 mm

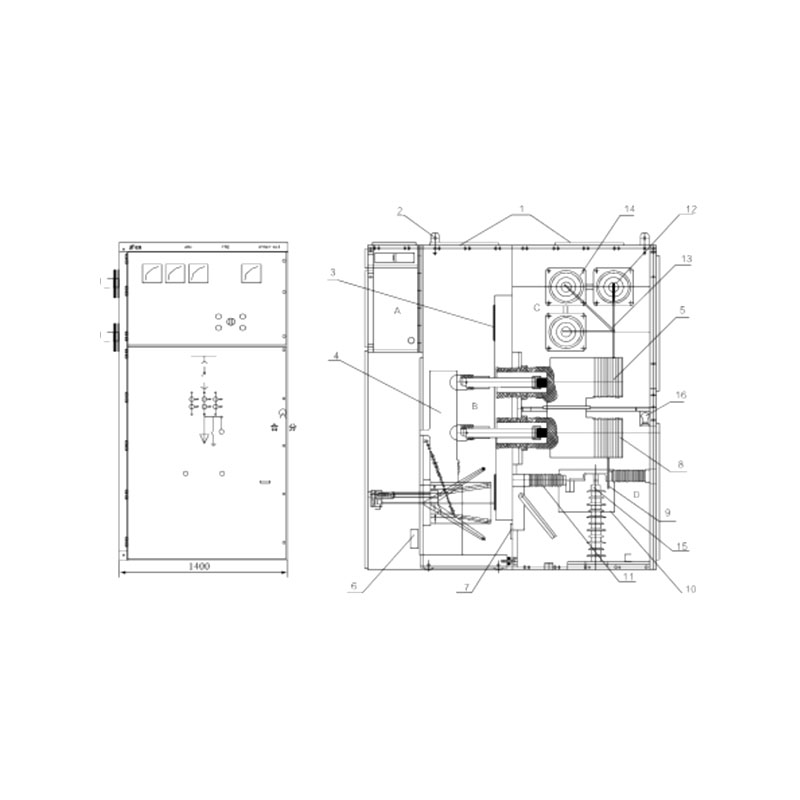

200003 A. Instrument Compartment 7. Heating Device
B. Circuit Breaker Compartment 8. Current Transformer
C. Busbar Compartment 9. Cable
D. Cable Compartment 10. Insulation Panel
E. Auxiliary Busbar Compartment 11. Grounding Switch
1. Pressure Plate 12. Main Busbar
2. Suspension Ring 13. Branch Busbar
3. Shutter 14. Insulation Sleeve
4. Circuit Breaker 15. Surge Arrester
5. Contact Box 16. Lighting
6. Secondary Plug
