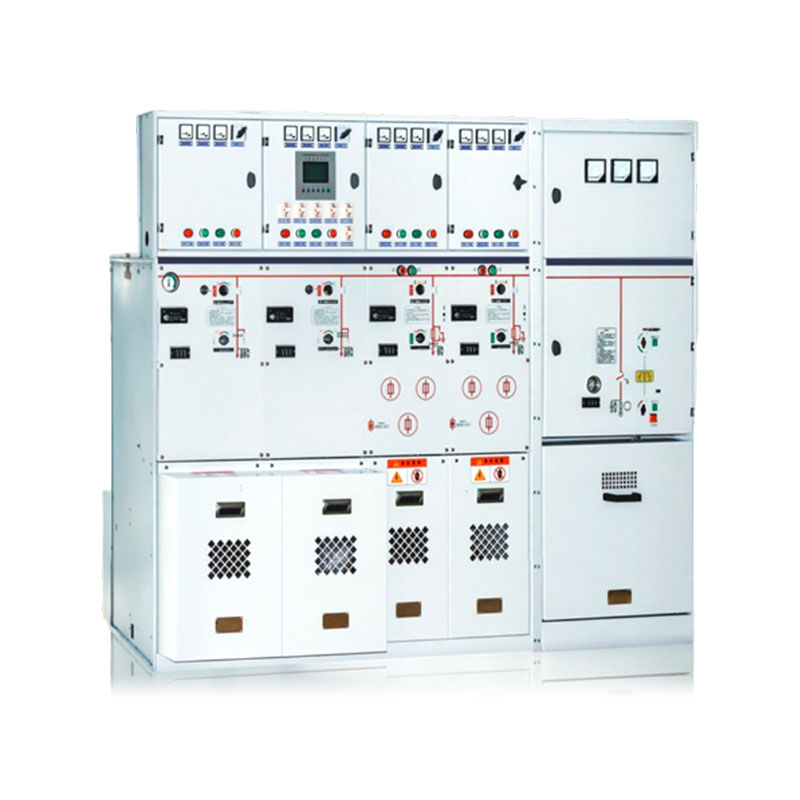

XBSRM-12 Fully insulated and fully sealed metal enclosed switchgear Custom

Home / Products / 12kV Medium Voltage Complete Switchgear Equipment / XBSRM-12 Fully insulated and fully sealed metal enclosed switchgear
Wenzhou Xubian Electric Co., Ltd.
  • XBSRM-12 Fully insulated and fully sealed metal enclosed switchgear
  • XBSRM-12 Fully insulated and fully sealed metal enclosed switchgear
  • Unit Definition
  • Performance Indicators
  • Product Features
  • Main Technical Parameters
  • Design Description
Unit Code Meaning
C Standard Single-Bushing Load Switch Unit
F Load Switch-Fuse Combination Unit
V Circuit Breaker Unit
D Cable Incoming Unit (Without Switch)
+ Busbar-Side Bushing
- Busbar Top Bushing
SL Bus Coupler Unit
M Metering Unit
PT PT Unit
1K2(4) Load Switch Unit with Double-Bushing Outgoing Connection



SF6 Gas Pressure Absolute Pressure at 20°C: 1.4 bar Normal Operating Conditions
Leakage Rate 0.2%/Year Maximum Temperature 40°C
Degree of Protection IP67 Minimum Temperature -40°C
Gas Chamber Stainless Steel Thickness 3.0 mm Maximum Average Relative Humidity ≤95%
Altitude ≤2000 m*
Busbar
Load Switch Internal Busbar 400 mm² Cu Applicable Standards
Switchgear Grounding Busbar 150 mm² Cu GB/T11022 GB3906 GB1985
GB16926 GB3804 GB1984
Color GB3309
Switchgear Front Panel RAL7012 IEC60056 IEC60129 IEC60265
Side Panel and Cable Compartment Cover RAL7035 IEC60298 IEC60420 IEC60694



Operational Safety:
Through the following safety measures, we provide users with special safety protection:
Integrated Three-Working-Position Load Switch
The circuit breaker uses a load switch instead of an isolating switch, making it safer and more reliable. The fully enclosed design on one side protects against accidental contact. The mechanical interlocking with electrical display meets the five-proof requirements and provides indication of the incoming and outgoing line status.
Reliable Operation: The fully enclosed design uses a gas tank welded from 3 mm stainless steel plates, with all 10 kV switches and live busbars sealed inside the gas tank. The matching silicone cable connectors provide fully insulated and fully enclosed cable connections, preventing the elastic operating mechanism from being affected by dust, moisture, small animals, and other external environmental factors. The manually or electrically operated panels use galvanized sheet metal with mimic diagrams to indicate the switch positions. The surface is electrostatically painted to enhance corrosion resistance and increase the safe pressure range of the SF6 gas inside the pressure vessel.

Economical:
Maintenance-Free
Highly Reliable
Service Life of up to 20 Years

Flexible Solutions:
Multiple Incoming Methods, Supporting Front, Right, Top, or Rear Cable Entry
Multiple Combination Methods, Allowing Flexible Combination of Individual Units
Insulated Busbars, Supporting Front-to-Back or Left-to-Right Cabinet Arrangements
Flexible Design Solutions

Wide Application:
Large Cable Outlet Capacity and Small Footprint, Suitable for Various Application Requirements.

Item Unit C Module F Module V Module CB Module
Load Switch Combination Apparatus Vacuum Switch Disconnector / Earthing Switch Vacuum Circuit Breaker Disconnector / Earthing Switch
Rated voltage kV 12 12 12 12 12 12
Rated frequency Hz 50 50 50 50 50 50
Power frequency withstand voltage (phase to phase/port) kV 42/48 42/48 42/48 42/48 42/48 42/48
Lightning impulse withstand voltage kV 75/85 75/85 75/85 75/85 75/85 75/85
Rated current A 630 Note 630 1250/630
Rated closed-loop breaking current A 630
Rated cable charging breaking current A 135/135
Rated short-circuit making current (peak) kA 50 80
Rated peak withstand current kA 50
Rated short-time withstand current kA/3s 20
Rated short-circuit breaking current kA 31.5 20 25
Rated transfer current A 1750
Max. current for matching fuse A - 125
Loop resistance Ω ≤ 300 ≤ 600
Mechanical life times 5000 3000 5000 2000 5000 5000

The XBSRM-12 fully insulated, fully enclosed metal-enclosed switchgear is installed on a galvanized sheet metal frame. The switch units are housed in an SF6 gas tank, which is made of a 3 mm thick stainless steel plate with anti-corrosion and non-magnetic properties. SF6 gas is a "pressure-sealed system" and can operate for 20 years under normal working conditions. The normal operating pressure of SF6 gas is 0.015~0.04 MPa. The gas tank is equipped with a pressure relief device, which ensures that the gas is released from the front or rear of the gas tank when excessive pressure occurs.
