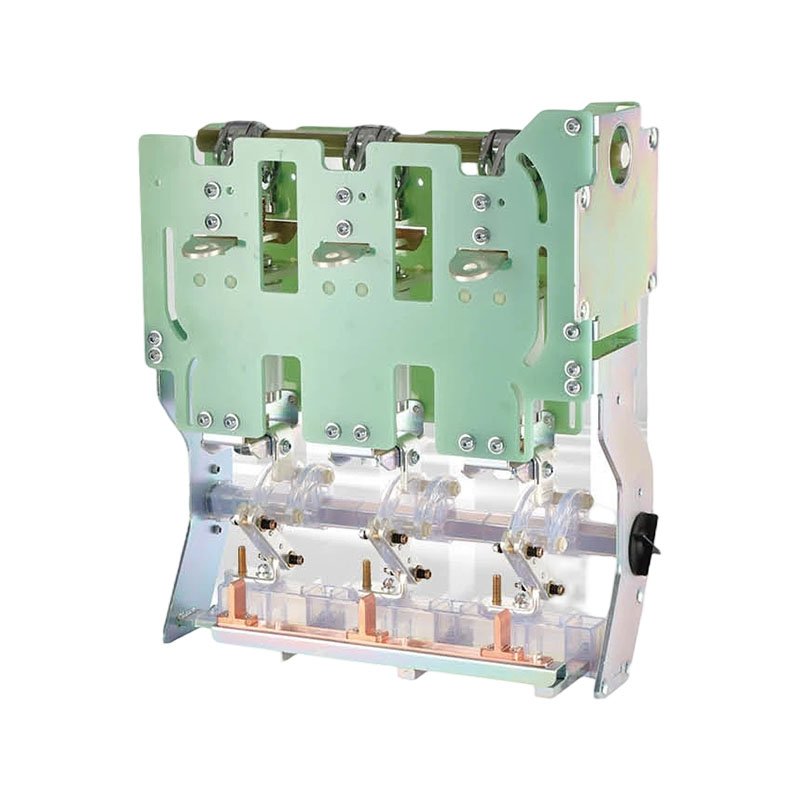

FKV-12kV-630A Circuit breaker for inflatable cabinet (grounded with isolation belt) Custom

Home / Products / Inflatable Cabinet Accessories Series / FKV-12kV-630A Circuit breaker for inflatable cabinet (grounded with isolation belt)
Wenzhou Xubian Electric Co., Ltd.
  • FKV-12kV-630A Circuit breaker for inflatable cabinet (grounded with isolation belt)
  • FKV-12kV-630A Circuit breaker for inflatable cabinet (grounded with isolation belt)
  • Model Designation
  • Operating Environment Conditions and Precautions
  • Main Technical Parameters
  • Mechanical Parameters
  • Dimensions and Mounting Dimensions

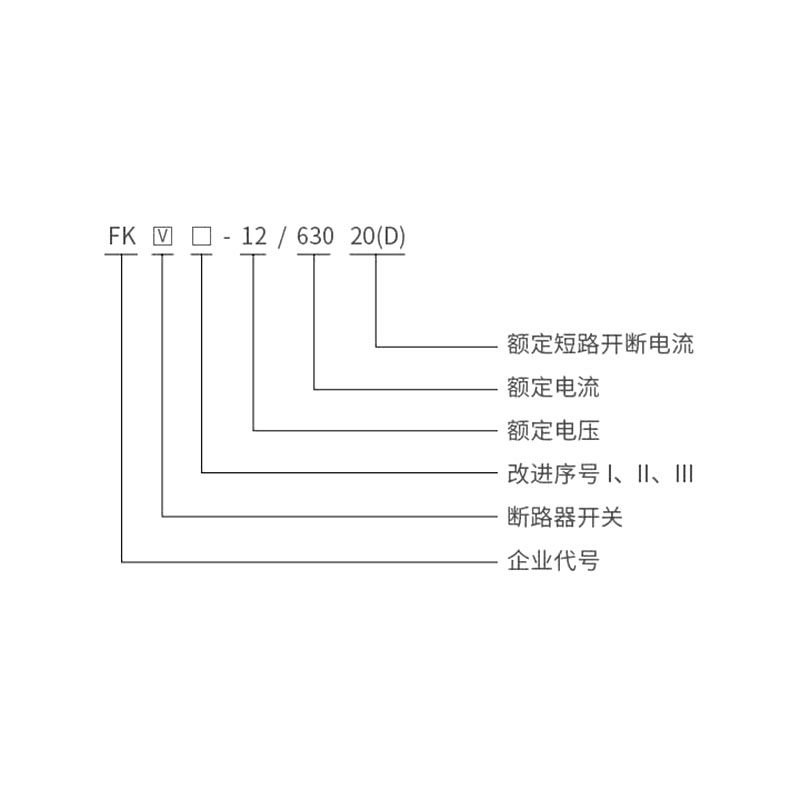

100012 Model Designation
20(D) Rated Short-Circuit Breaking Current
630 Rated Current
12 Rated Voltage
I、II、III Revision Number I, II, III
V Circuit Breaker Switch
FK Manufacturer Code

◆ Altitude not exceeding 2000m; seismic intensity not exceeding 8 degrees.
◆ Ambient operating temperature: -30℃ to +40℃; average daily relative humidity not exceeding 95%, average monthly not exceeding 90%.
◆ Not suitable for installation sites with frequent severe vibration, water vapor or gases that significantly affect mechanism performance, chemically corrosive deposits, salt mist, dust and dirt, or fire and explosion hazards.

No. Item Unit Technical Parameter
1 Rated Frequency Hz 50
2 Rated Current A 630
3 Rated Short-Time Withstand Current kA 20/25
4 Rated Peak Withstand Current kA 50
5 Rated Short-Circuit Duration s 4
6 Rated Short-Circuit Making Current kA 50
7 Rated Operating Sequence O-0.3s-CO-180s-CO



No. Item Unit Technical Parameter
1 Circuit Breaker Main Circuit Resistance μΩ ≤ 40
2 Overtravel mm 2-3
3 Contact Gap mm 8.5±1
4 Bounce ms ≤ 2
5 Average Opening Speed m/s 1.2±0.2
6 Average Closing Speed m/s 0.6±0.2
7 Opening Three-Phase Non-Simultaneity ms ≤ 2
8 Closing Three-Phase Non-Simultaneity ms ≤ 2

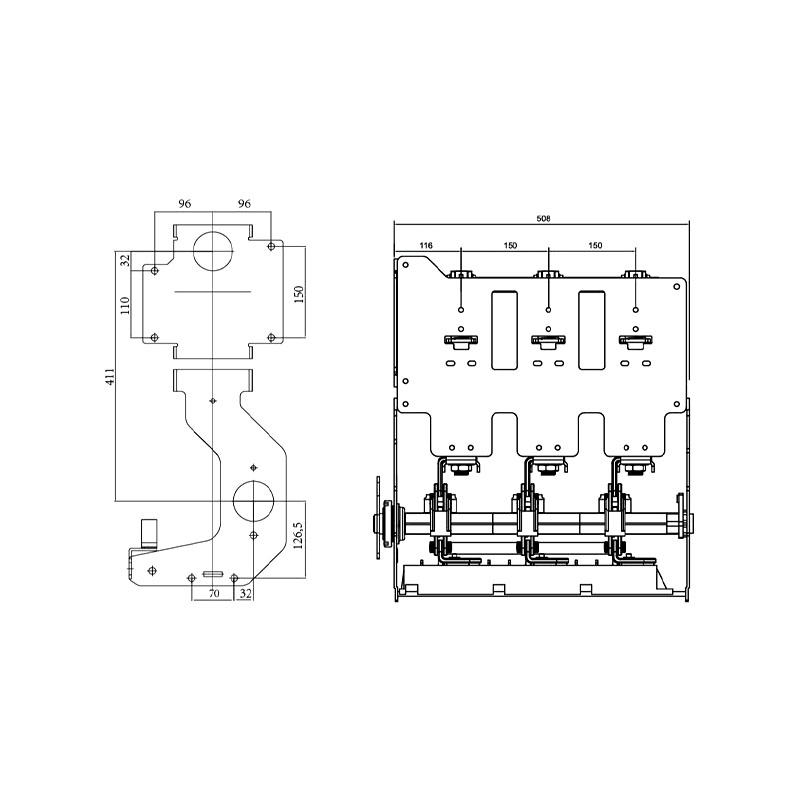

Dimensions and Mounting Dimensions
